Description
|
Rivet Type
|
Push In |
|
Shank Style
|
Pin Lock |
|
For Material Thickness
|
0.04″-0.38″ |
|

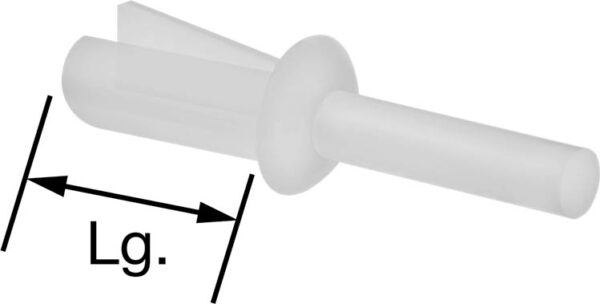

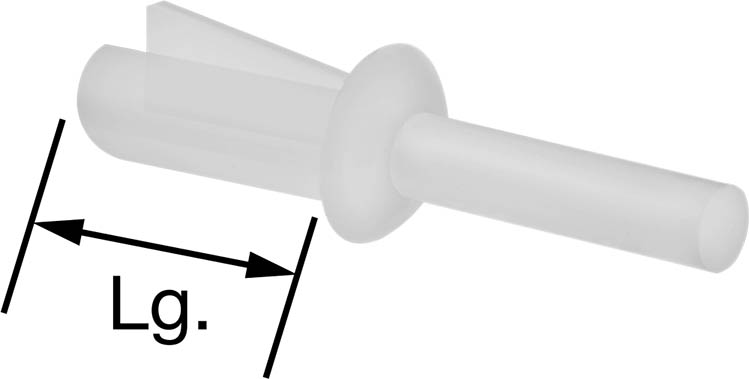

Length
|
0.42″ |
|
For Hole Size
|
0.187″ |
|
For Drill Bit Size
|
3/16“ |
|
Head Type
|
Domed |
|

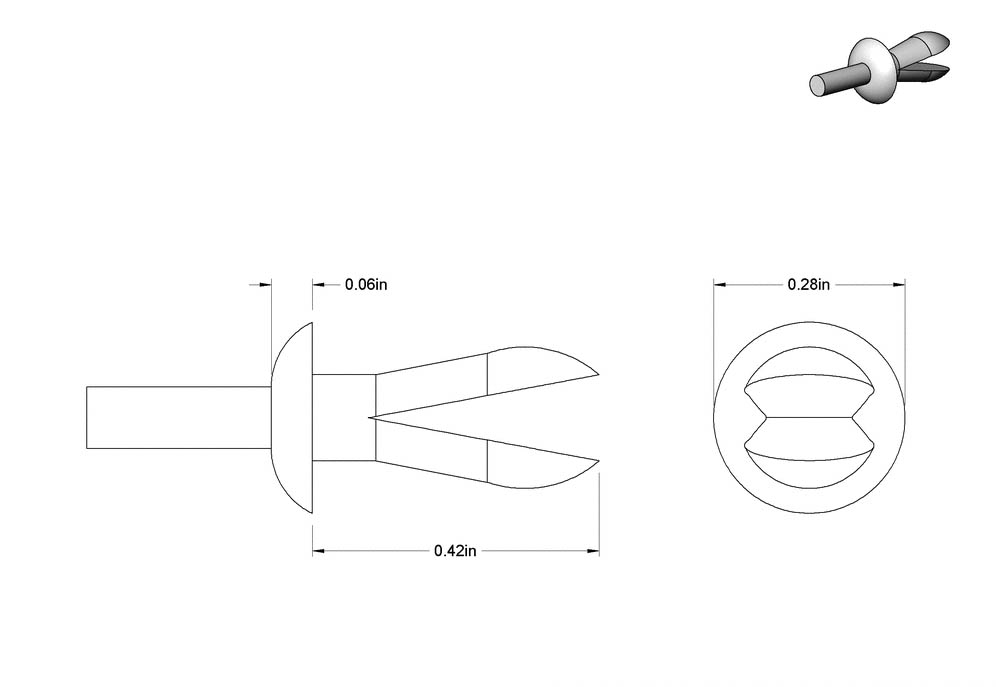

Head Diameter
|
0.28″ |
|
Head Height
|
0.06″ |
|
Temperature Range
|
-40° to 145° F |
|
Material
|
Nylon Plastic |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Peoples Republic of China |
|
Schedule B
|
392690.9988 |
|
ECCN
|
EAR99 |

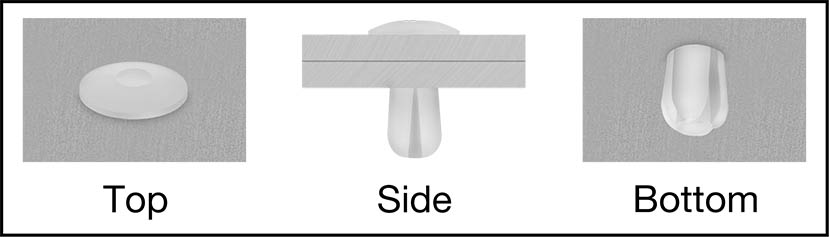

No installation tools required—use your thumb to push these rivets into place from one side of the material. To remove, pop them out with a removal tool (sold separately). Made of nylon, rivets absorb environmental moisture, which can affect dimensions and other properties.
Pin-lock shank rivets have a pin that you press through the head to expand the body and lock the rivet in place.
