Description
|
Material
|
6061 Aluminum |
|
Appearance
|
Dull |
|

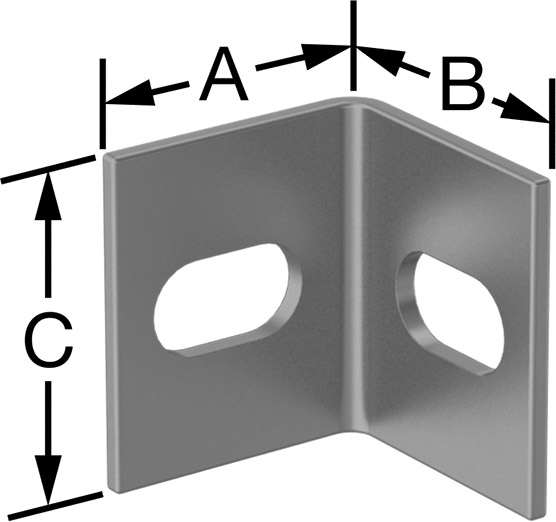

Length
|
|
|
(A)
|
1″ |
|
(B)
|
1″ |
|
(C)
|
1 1/4“ |
|

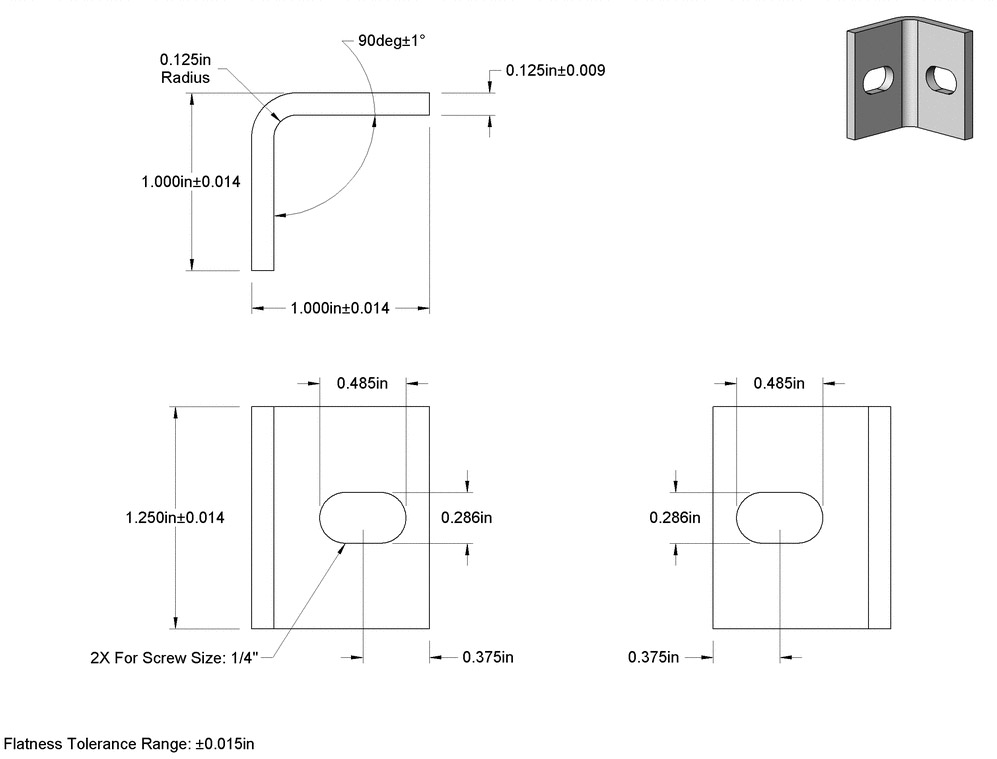

Length Tolerance
|
-0.014″ to 0.014″ |
|
Thickness
|
0.125″ |
|
Thickness Tolerance
|
-0.009″ to 0.009″ |
|
Capacity
|
Not Rated |
|
Angle
|
90° |
|
Angle Tolerance
|
-1° to 1° |
|
Corner Radius
|
1/8“ |
|
Flatness Tolerance
|
-0.015″ to 0.015″ |
|
Mount Type
|
Screw On |
|
Mounting
|
|
|
Fasteners Included
|
No |
|
Number of Slots
|
2 |
|
For Screw Size
|
1/4“ |
|
System of Measurement
|
Inch |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
Yes |
|
Schedule B
|
830250.0000 |
|
ECCN
|
EAR99 |

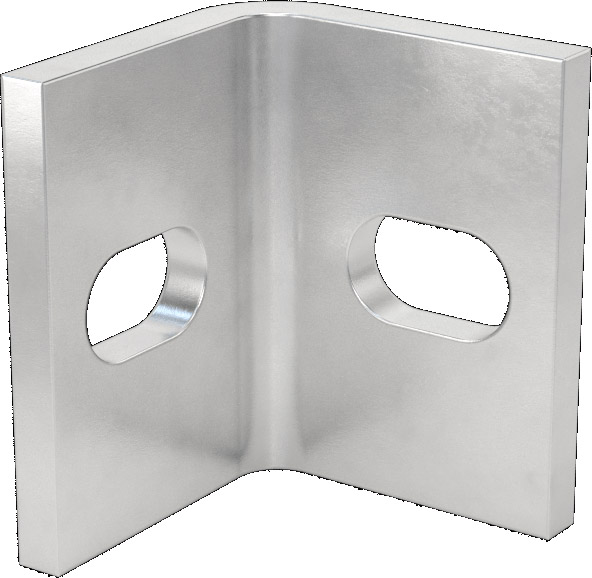

Made to meet tight dimensional tolerances for mounting applications on machines and automated equipment.
