Description
|
Style
|
B |
|
Mount Type
|
Screw In |
|
Cable Tie Orientation
|
Two Way |
|
For Maximum Number of Bundles
|
1 |
|
For Cable Tie
|
|
|
Style
|
Narrow, Standard, Wide |
|

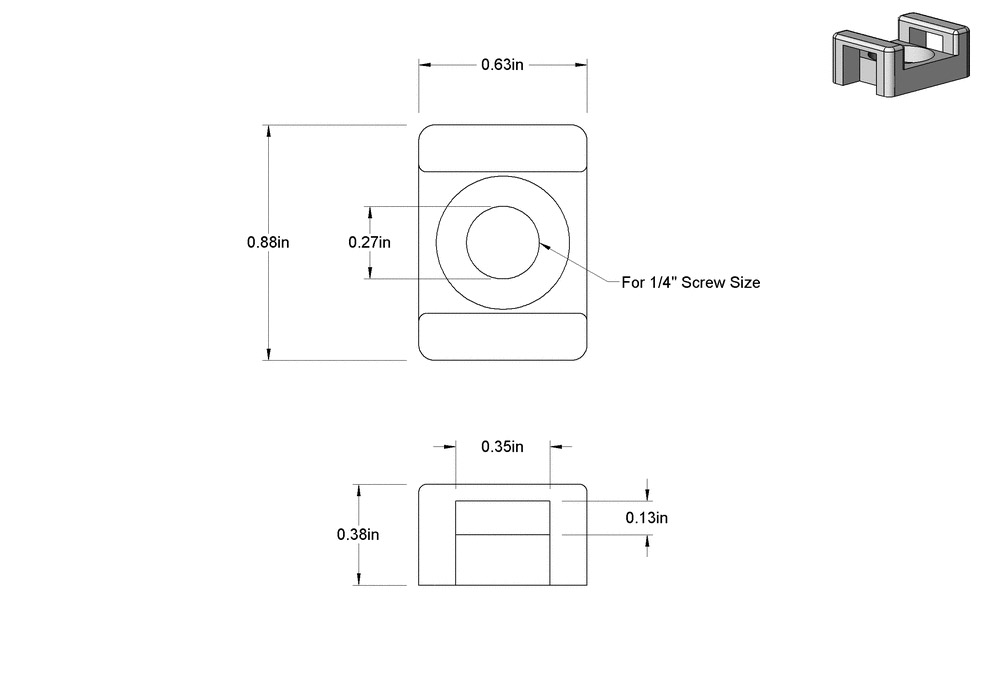

Maximum Width
|
0.35″ |
|
Maximum Thickness
|
0.13″ |
|
For Screw Size
|
1/4“ |
|
Mounting Hole Diameter
|
0.27″ |
|
Mounting Fasteners Included
|
No |
|
Overall
|
|
|
Length
|
7/8“ |
|
Width
|
5/8“ |
|
Height
|
3/8“ |
|
Material
|
Nylon Plastic |
|
UV Protection
|
None |
|
For Use Outdoors
|
No |
|
Specifications Met
|
UL 62275 Type 21, UL 94 V-2 |
|
Temperature Range
|
32° to 180° F |
|
Color
|
Off-White |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
Yes |
|
Schedule B
|
392690.9988 |
|
ECCN
|
EAR99 |
Mount to a surface and add a cable tie to secure a bundle.
Two-way mounts allow ties to be inserted from opposite sides.
Screw-in mounts require a fastener.
Mounts that meet UL 94 V-2 stop burning within 30 seconds.
