Description
|
Head Type
|
Hex |
|
Drive Style
|
External Hex |
|
System of Measurement
|
Inch |
|
Thread Direction
|
Right Hand |
|
Thread Size
|
6-32 |
|
Screw Size Decimal Equivalent
|
0.138″ |
|
Thread Type
|
UNC |
|
Thread Fit
|
Class 2A |
|
Length
|
1/4“ |
|
Threading
|
Fully Threaded |
|
Thread Spacing
|
Coarse |
|
Head
|
|
|
Width
|
1/4“ |
|
Height
|
3/32“ |
|
Material
|
18-8 Stainless Steel |
|
Tensile Strength
|
80,000 psi |
|
Hardness
|
Rockwell B70 |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
|
DFARS
|
Not Specialty Metals Compliant |
|
Country of Origin
|
Taiwan or Thailand |
|
Schedule B
|
731815.9000 |
|
ECCN
|
EAR99 |

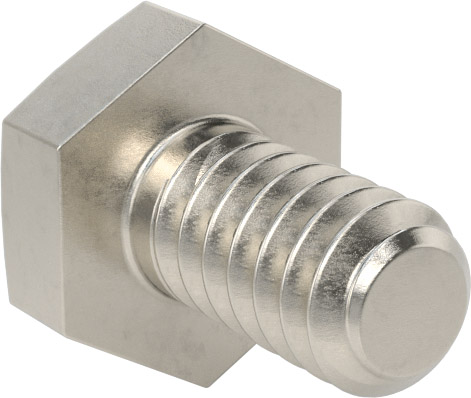

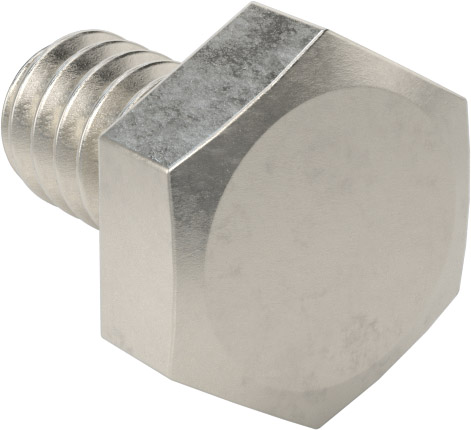

Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.
Match the thread spacing of mating components.
Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch.
