Description
|
Head Type
|
Hex |
|
Drive Style
|
External Hex |
|
System of Measurement
|
Metric |
|
Thread Direction
|
Right Hand |
|

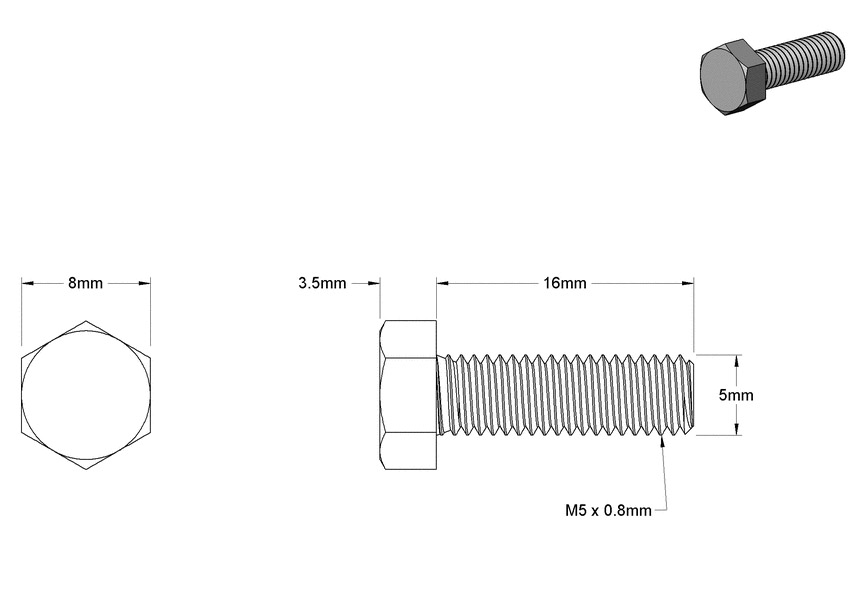

Thread Size
|
M5 |
|
Thread Pitch
|
0.8 mm |
|
Thread Type
|
Metric |
|
Thread Fit
|
Class 6g |
|
Length
|
16mm |
|
Threading
|
Fully Threaded |
|
Thread Spacing
|
Coarse |
|
Head
|
|
|
Width
|
8mm |
|
Height
|
3.5mm |
|
Material
|
18-8 Stainless Steel |
|
Tensile Strength
|
100,000 psi |
|
Hardness
|
Not Rated |
|
Specifications Met
|
ISO 4017, DIN 933 |
|
RoHS
|
RoHS 3 (2015/863/EU) compliant with exemptions 6(a)-I, 6(b)-II, and 6(c) – Lead as an alloying element in steel and aluminum and in copper alloy |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals Compliant (252.225-7009) |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
731815.9000 |
|
ECCN
|
EAR99 |

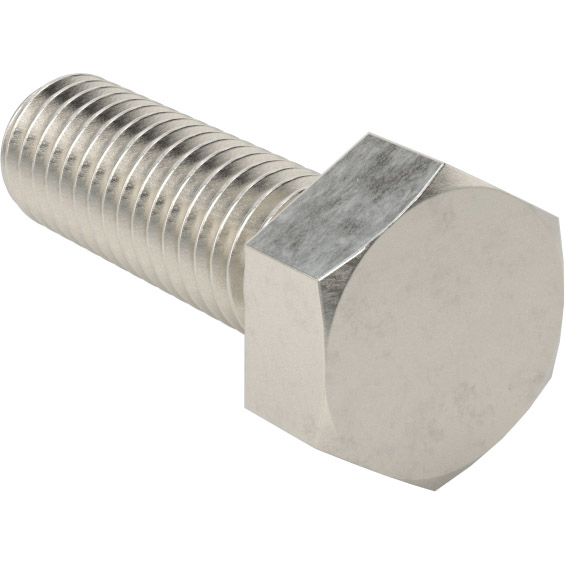

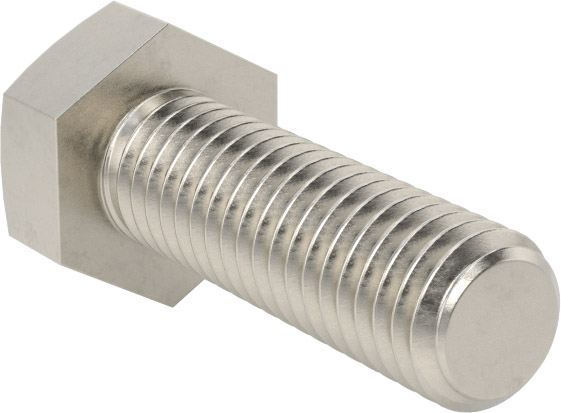

Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.
Metric screws are also known as A2 stainless steel screws.
Match the thread spacing of mating components.
Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch.
Screws that meet ASME, or ISO (formerly DIN), or DIN specifications comply with these dimensional standards.
